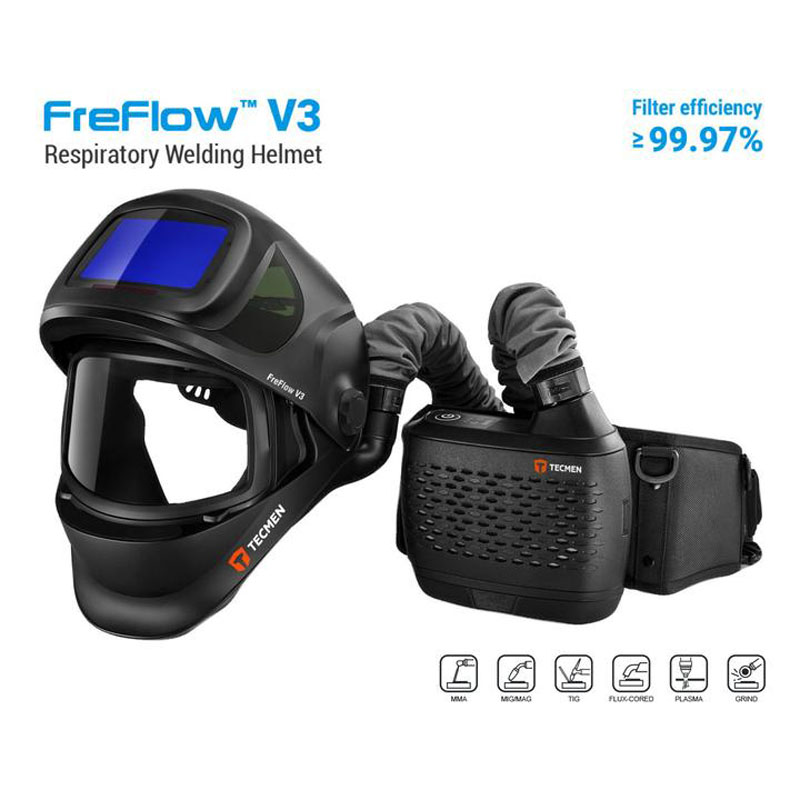

TECMEN V3 AIR FED HELMET WITH FREFLOW PAPR Respiratory Air Fed Welding Helmet

The Tecmen V3 PAPR FreFlow respirator system protects from inhalation of dust, pollutants, fine particles and other contaminates in the workplace.

Welding helmet features include a flip up design with optical class 1/1/1/1 ADF950S iEXP and curved grinding visor with 20 x 12cm viewing area.

Tecmen Freflow powered air purifying respirator (PAPR) filter efficiency is ≥99.97. Blower unit features include real time digital display indicator and a rechargeable Li-ion battery for up to 9 hours use @ 170 litres per minute.

Safety features include audible, flashing and vibration alarms; designed to alert the operator of potential problems.

A full range of replacement parts for the Tecmen V3 helmet and FreFlow blower unit are available from stock.

Tecmen FreFlow PAPR Specification:

• Airflow Rate (LPM): Low (170) / High (210)
• Battery: Rechargeable Li-ion
• Standard Battery (Hours): Low (9)/ High (5-6)
• Heavy Duty Battery (Hours): Low (15)/ High (9)*
• Battery Charge: 1hr Std / 2hr Heavy Duty
• Battery Life: 550 charges
• Particle Filter P3
• Filter Efficiency: 99.97%
• Auto Alarms: Visible, Audible, Vibrate
• Operating Temp: -5°c to 55°c (23° to 131° F)
• Weight (Blower Unit & Battery): 1.2kg

Tecmen V3 Helmet Specification:

• Optical Class: 1/1/1/1
• Viewing Area: 107 x 75mm
• Cartridge: 156 x 123 x 33mm
• Grinding Lens View: 20 x 12cm
• Modes: Welding/Cutting/Grinding
• Arc Sensor: 4
• Light State: DIN 3.5
• Dark State: DIN 5-8 / 9-13
• Shade Control: Internal, Digital Display
• Power: Manually On/Off, Auto Off
• Sensitivity Control: Low-High, Digital Display
• UV/IR Protection: Up to DIN16
• Power Supply: Solar cell, 2 x CR2450 lithium battery
• Switching Time: 1/25,000 s light to dark
• Delay (Dark to Light): 0.1 ~ 1.0s by dial control
• Low Amperage TIG rated (AC – DC): ≥ 2 amps
• Applications: MMA, TIG, TIG Pulse, MIG Pulse, Plasma Cutting/Welding, Air Arc Gouging, Grinding

Standards/Approvals:

• FreFlow Blower Unit: EN12941 TH2, NIOSH 42 CFR84 AS/NZS 1716
• ADF950S iEXP Helmet: DIN plus, CE, ANSI Z87.1, CSAZ94.3, AS/NZS 1338.1

* Optional extra, sold separately

Part Number (SKU) SAFE4033
