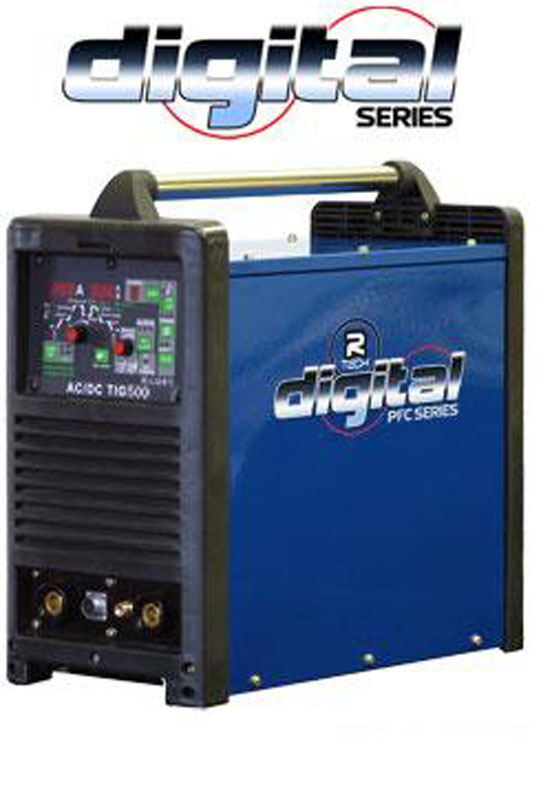

TIG Welder 415V AC/DC 500A DIGITAL PANEL

TIG Welder 415V AC/DC 500A DIGITAL PANEL

• Digital control panel – designed for easy use
• Control all parameters from a single button
• Easy start and finish set-up
• Store up to 9 jobs in memory
• 3 AC Waveforms
• Square Wave: fast cooling weld pool, deep penetration and fast travel speed
• Sine Wave: Low arc noise, for a more traditional arc
• Triangular Wave: designed for thin alloys, reduces heat input
• Amperage Range DC: 5 to 500 Amps
• Amperage Range AC: 10 to 500 Amps
• Input voltage: 415v – 32Amps
• 35% Duty Cycle @: 500A (TIG)
• 60% Duty Cycle @: 300A (TIG)
• 100% Duty Cycle @: 265A at (TIG)
• 25% Duty Cycle @: 400A (MMA)
• 60% Duty Cycle @ 275A (MMA)
• 100% Duty Cycle @: 245A at (MMA)
• Installed Power: 15KVA
• Insulation Class: IP23S
• AC Frequency: 15-200Hz
• Pulse width: 0.1-1.0s
• Pulse Frequency AC: 0.5-10Hz
• Pulse Frequency DC: 0.5-500Hz
• VRD Voltage Reduction in MMA – reduces OCV in standby for increased user safety
• True 4-way trigger latching with control of pre/post flow gas, initial/final amps, slope up/down
• Generator Friendly – Recommended minimum of 18KVA
• Dual LED displays for preset and actual amperage
• MMA Anti-Stick & Hot Start technology
• 3 Year Warranty
