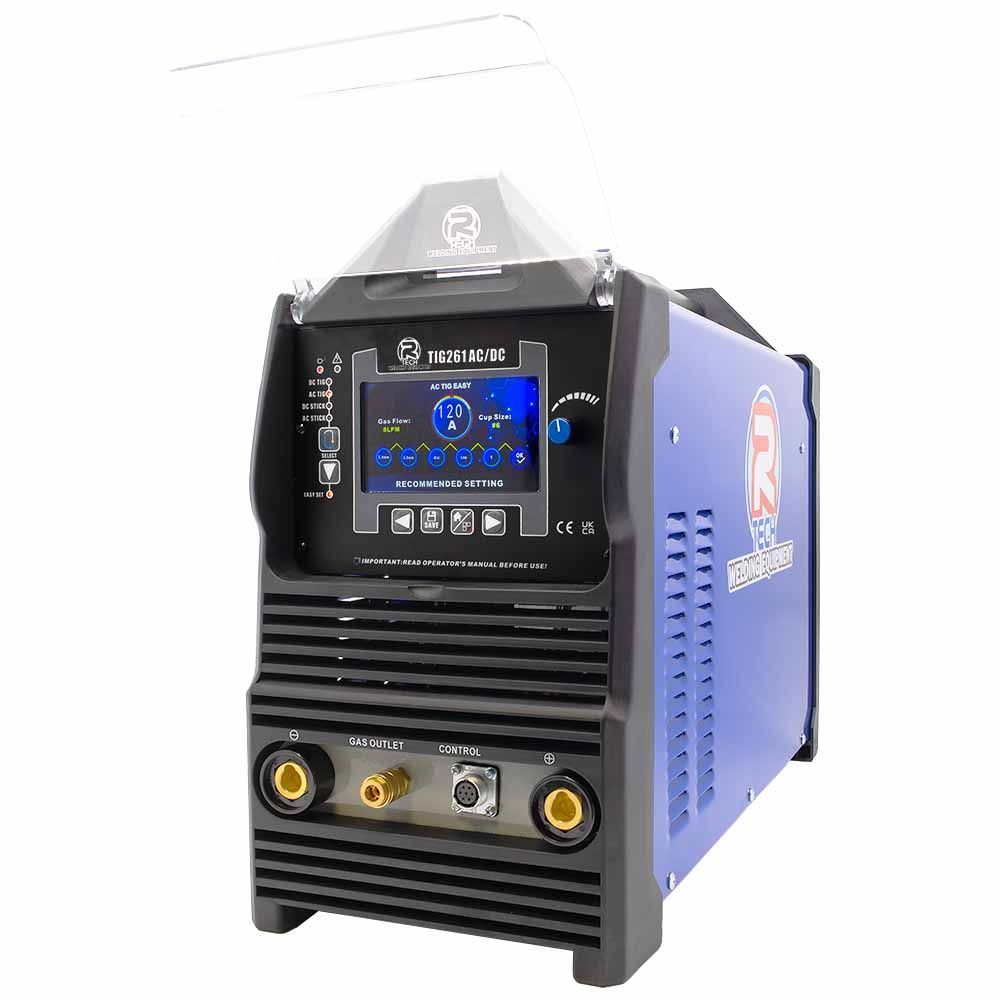

R-Tech TIG Welder Digital AC/DC 260 Amp 240v

SKU: YIOBWPKLNW

£1,495.00 Ex. VAT

  • Description
  • Brand
  • Additional information

Description



The R-Tech TIG260EXT is a power-packed 260Amp AC/DC TIG welder with 240V input, 4 AC waveforms, 9 Job memory store, True 4 way trigger latching with pre/post gas, slope up/down and start/final amps, LED display, advanced pulse welding and includes a remote foot pedal and a massive 60% duty cycle


  • Professional Ultra Flex Torch – Flexible head and ultra flexible cable & sheath
  • Digital control panel – designed for easy use
  • Fan-On-Demand fan cooling system for quieter operation
  • 9 Job memory storage
  • 4 AC Waveforms: Advanced Square Wave, Soft Square wave, Triangular wave & Sine wave
  • Low starting amperage from 5 Amps DC and 10 Amps AC
  • Highly efficient Inverter technology – lightweight and power efficient
  • Microstart HF – improved arc starting and less interference – What is this?
  • Lift Tig start option when welding near sensitive electronics – Automotive ECUs etc
  • True 4-way trigger latching with control of pre/post flow gas, initial/final amps, slope up/down
  • VRD Voltage Reduction in MMA – reduces OCV in standby for increased user safety
  • Amperage Range: DC 5 to 260 Amps – AC 10 to 260 Amps
  • 2 year collect and return UK warranty – What is this?
  • Includes a remote foot pedal worth £178

 Amperage range  DC 5-260A,  AC 10-260A,   MMA 20-210A
 Duty cycle  TIG 260A 60% – MMA 210A 60%
 Input voltage/amps  240v 34A  – No load voltage 70v
 Memory Stores  9
 AC Frequency  20 – 250 Hz
 AC Balance  5 – 90 %
 Pulse Width  5 – 95 %
 Pulse Frequency  AC 0.1 – 250 Hz Squarewave
   AC .01 – 250 Hz Soft, Sine & Triangular Wave
   DC 0.1 – 500 Hz
 Pre flow gas  0 – 25 seconds
 Post flow gas  0 – 50 seconds
 Start amperage  Yes
 End amperage  Yes
 Slope up  0 – 25 seconds
 Slope down  0 – 25 seconds
 HF Start  Yes
 Lift Start  Yes
 MMA Arc force  0 – 100 %
 MMA Hot start  0 – 2 seconds
 MMA Hot start amps    0 – 100%
 VRD  Yes – Reduces MMA OCV for user safety
 Gross weight  27KG
 Dimensions  438H x 232W x 550L (mm)
 Insulation class  IP21S
 Cooling fan  Fan-On-Demand fan cooling system for quieter operation



  • Digital control panel – designed for easy use

    – Control all parameters from a single button

    – Easy start and finish set-up

    – Store up to 9 jobs in memory


  • 4 AC Waveforms

    – Advanced Square Wave: fast cooling weld pool, deep penetration and fast travel speed

    – Soft Square and Sine Wave: Lower arc noise, for a more traditional arc

    – Triangular Wave: designed for thin alloys, reduces heat input


  • Microstart HF – improved arc starting and less interference – What is this?
  • Lift Tig start option when welding near sensitive electronics – Automotive ECUs etc
  • VRD Voltage Reduction in MMA – reduces OCV in standby for increased user safety
  • Full 4-way functioning with control of pre/post flow gas, initial/final amps, slope up/down
  • Generator Friendly – Recommended minimum of 10KVA
  • LED display for preset and actual amperage
  • MMA Anti-Stick, Arc-Force & Hot Start technology


  • Generator Friendly – Generator must be minimum of 12KVA 240V and fitted with AVR (auto voltage regulation)
  • 2 year collect and return UK warranty – What is this?
  • Includes a remote foot pedal worth £178

Brand

R-Tech

Additional information

Weight 27 kg
Brand

R-Tech
